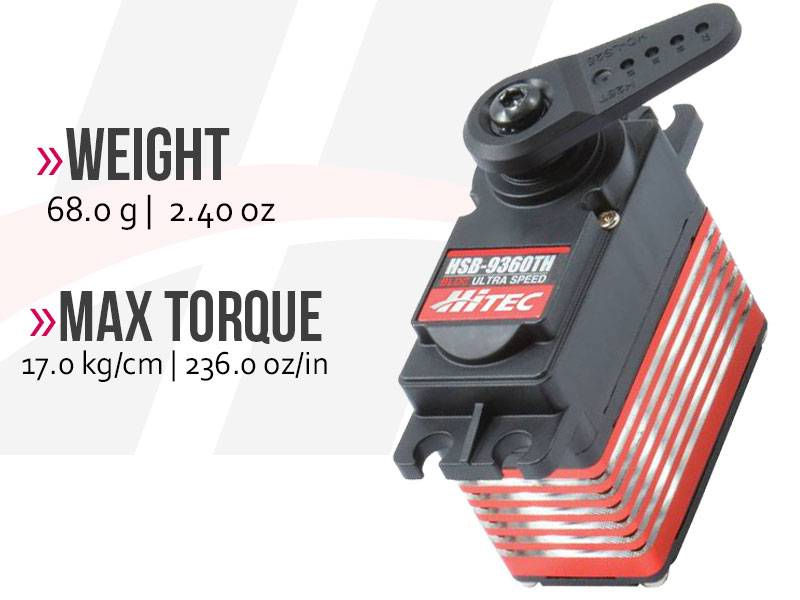

HSB-9360TH High Speed, Brushless, Titanium Gear Servo

Operating Voltage Range (Volts DC)    6.0V ~ 7.4V
Speed (Second @ 60°)    0.08 ~ 0.06
Maximum Torque Range oz. / in.    236
Maximum Torque Range kg. / cm.    17
Current Draw at Idle    27 mA
No Load Operating Current Draw    250 mA
Stall Current Draw    2,100 mA
Dead Band Width    1 µs
Physical Specifications
Dimensions (Inches)    1.57 x 0.79 x 1.50
Dimensions (Metric)    40.0 x 20.0 x 38.0
Weight (Ounces)    2.4
Weight (Gram)    68.0
Circuit Type    EBL Digital
Motor Type    Brushless
Gear Material    Titanium
Bearing Type    Dual Ball Bearing
Output Shaft (type / Ømm)    H25T
Case Material    Plastic / Aluminum
Dust / Water Resistance    Splash Proof
Connector Gauge (AWG) / Strand Count    20 / 80
Radio Control Applications
Parkflyer    N / A
Sport Plane    30 - 40%
Sailplane    2 meters and up
3D Performance    30 - 40%
Scale    30 - 40%
Electric Helicopter    700mm and up
Gas Helicopter    90+ Class
On Road    1/10th
Monster Truck    1/10th
Buggies    1/10th
Truggies    1/10th
Short Course / Truck    1/10th
Crawlers    N / A
Sail Boat    N / A
Power Boat
