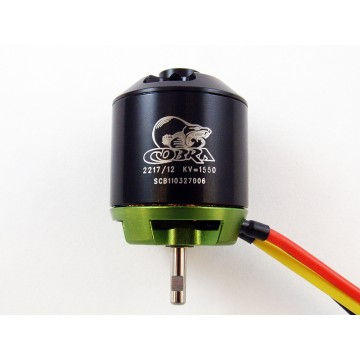

Cobra 2217-12 Motor Specifications
 Stator Diameter 22.0 mm (0.866 in)
 Stator Thickness 17.0 mm (0.669 in)
 Number of Stator Slots 12
 Number of Magnet Poles 14
 Motor Wind 12 Turn Delta
 Motor Kv Value 1550 RPM per Volt
 No Load Current (Io) 1.15 Amps @ 8 Volts
 Motor Resistance (Rm) per Phase 0.066 Ohms
 Motor Resistance (Rm) Phase to Phase 0.044 Ohms
 Maximum Continuous Current 32 Amps
 Max Continuous Power (2-cell Li-Po) 230 Watts
 Max Continuous Power (3-cell Li-Po) 350 Watts
 Motor Weight 74.0 grams (2.61 oz.)
 Outside Diameter 27.7 mm (1.091 in.)
 Shaft Diameter 3.17 mm (0.125 in.)
 Motor Body Length 33.0 mm (1.299 in.)
 Overall Shaft Length 47.0 mm (1.850 in.)
 Motor Timing 5-10 degrees
 PWM Frequency
